Pixel count: 4 million
Sensor target surface: 1/2.7
Aperture: F1.6
Focal length: 8.0 mm
Fill light mode: infrared fill light, warm light fill light, intelligent dual light
Supplementary lighting distance: 50m for infrared supplementary lighting, 30m for warm supplementary lighting
Wide Dynamic: Digital Wide Dynamic
Maximum frame rate: 2560* 1440@30fps
Video parameters: Mainstream:
2560* 1440@25 (default), 2560* 1440@30 、
2304* 1296@25 2304* 1296@30 、
1920* 1080@25 1920* 1080@30
1280* 720@25 1280* 720@30
Auxiliary flow: 720 * 576, 640 * 360, 704 * 288, 352 * 288
OSD quantity: maximum 8 lines
Audio encoding formats: G.711A, G.711U
Built in Mic: 1 unit
Built in speaker: 1
Motion detection: support
Network protocol: IPv4; DHCP; UDP; TCP; RTP; RTSP; DNS; DDNS; NTP; UPnP; HTTP; RTCP; RTMP; IGMP; ICMP
Compatible access: ONVIF, GB/T 28181, API
National standard: Supports
Audio input: 1 input
Audio output: 1 output
Alarm input: 1 input
Alarm output: 1 output
SD card interface: Micro SD slot * 1, maximum support 512GB
Power supply: DC12V ± 25%; POE(IEEE802.3af)
Maximum power consumption: 6.0W
Waterproof and dustproof: IP67

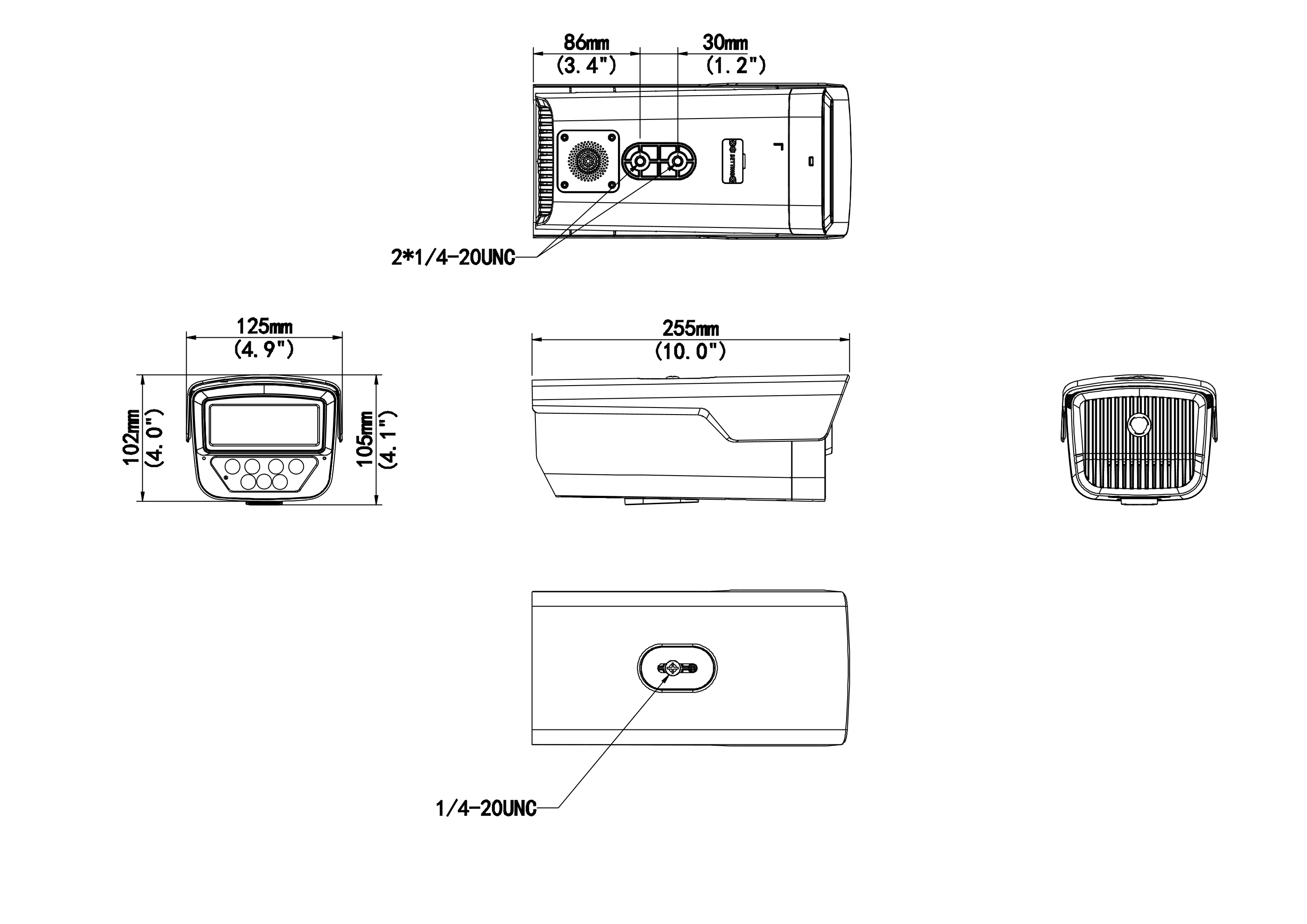

Dimensions: 255mm * 125mm * 105mm
Weight: 0.79kg
