Operating system: Embedded Linux operating system
Display screen: 3.97 inches
Screen resolution: 480*800
Camera: 200W dual camera
Communication mode: 100Mbps single network port
Interfaces: Power interface ×1, network interface ×1, 485 ×1, Wiegand input ×1, Wiegand output ×1, IO input ×2, IO output ×1, door lock interface ×1, door open button interface ×1, door sensor interface ×1, tamper-proof button ×1, reset button ×1;
Power input: DC12V±25%/1A input
1: N verification maximum storage capacity: 6000
Maximum storage capacity of card number: 12,000
Record capacity of this device: 100,000 event records (excluding images)
Intelligent recognition rate: >99%
Intelligent recognition time: 200ms
Power consumption: 7.5W

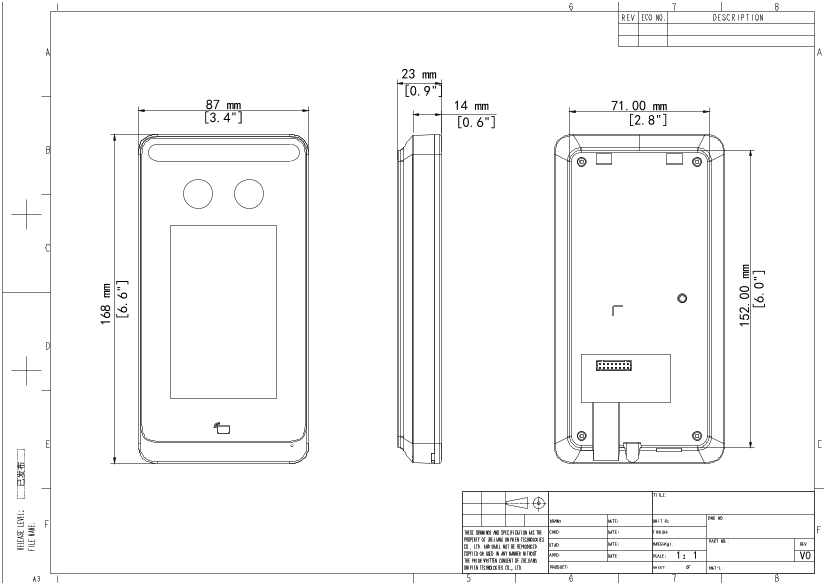

Dimensions (W*H*D): 87*23*168(mm)
Weight: 228g (measured without any accessories)
Operating temperature: -10℃~60℃
Operating environment: Indoor, semi-outdoor (with waterproof cover)
Installation method: Wall-mounted installation, supporting surface mounting and 86-box installation
